ALPINE KTA-30FW
$ XXX.XX
KTA-30FW
Space Saving & Powerful
The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit’s original built-in power.
Dynamic Peak Power
The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.

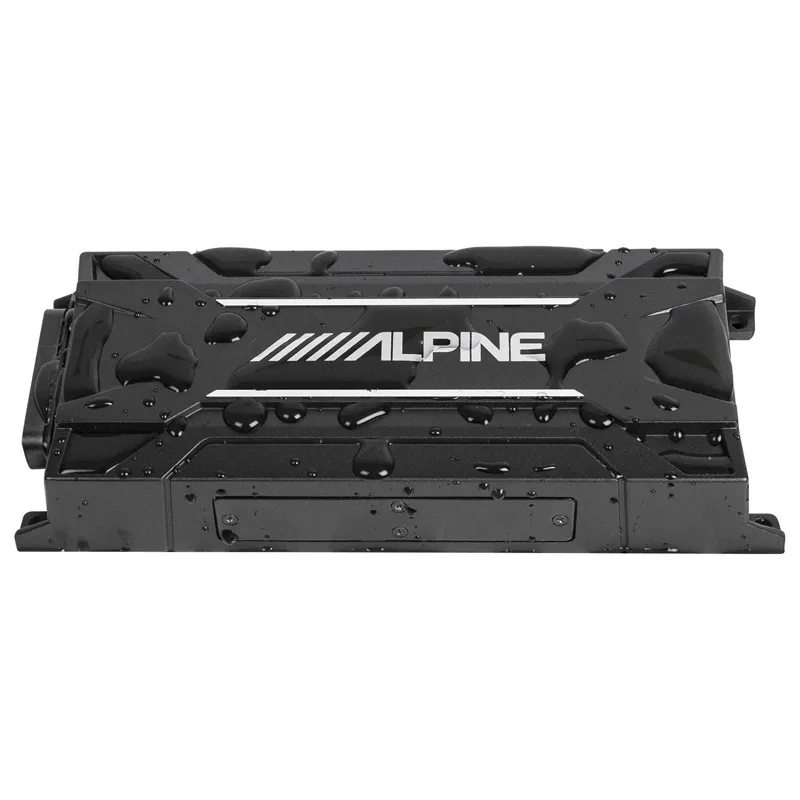

Weather Resistant Format
The KTA-30FW is ready for your adventures. It is weather resistant, rated at IP66 for protection against dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open-top vehicles and motorcycles.
Product Details:
- Power Pack Series Class D 2 ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 75 watts x 4 channel
- 2 ohm: 75 watts x 4 channel
- Bridged: 150 watts x 2 channel @ 4 ohm
- Total power output: 300 watts
- Speaker-level (high-level) inputs
- Dynamic Peak Power (DPP) technology adds a burst of power when needed
- Weather-resistant (IP66 rated) chassis and waterproof connector
- Selectable 2-or 4-channel input
- Input sensitivity:
- Low level: 0.2 – 4 volts
- High level: 0.5 – 10 volts
- Frequency Response: 15 – 36000 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: 82 dB
- Variable high-pass filter: 50 – 400 Hz
- Variable low-pass filter: 50 – 400 Hz
- Fuse Rating: 30
- 8 AWG gauge amplifier wiring kit is recommended for installation.
- Dimensions: 9-3/16″ L x 3-3/4″ W x 1-5/8″ H
- 1-year Manufacturer’s Warranty
- MFR #: KTA-30FW
Additional information
| Weight | 3 lbs |
|---|
