ALPINE R2-A60F

$ XXX.XX

R2-A60F

Hi-Res Certified

The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.

Simplified Installation

Intentional designs were made to the amplifier that consolidated all speaker connections to one side of the amplifier for easy access. Amplifier controls were relocated to the top of the amplifier under a removable plate for convenient access to gain and crossover controls. To simplify the installation process, mounting “feet” are integrated onto the chassis of the amplifier

Cotizar por WhatsApp

SKU: R2-A60F Category: 4 Channel Amplifiers Brand: ALPINE

Description
Additional information

Product Details:

R-Series Class D 2 ohm Stable 4-Channel Amplifier
RMS Power Rating:
- 4 ohm: 100 watts x 4 channel
- 2 ohm: 150 watts x 4 channel
- Bridged: 300 watts x 2 channel @ 4 ohm
Total power output: 600 watts
Power and voltage LED visual indicator
Wired bass level remote control with optional Alpine RUX-KNOB.2 or Alpine RUX-H01 (Sold separately)
Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
Signal sensing remote turn-on
Hi-res audio certified (up to 45kHz)
Reduced foot print (15% smaller compared to the previous model)

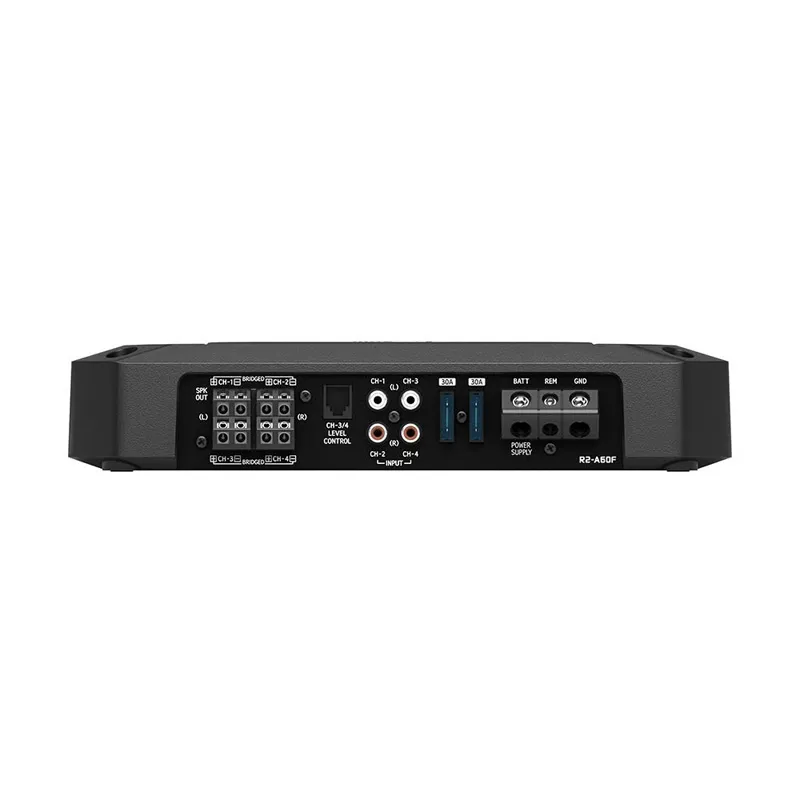

One sided terminal layout
Top panel sound controls
Integrated mounting feet for simple installation
Input sensitivity:
- Low level: 0.2 – 4 volts
- High level: 0.5 – 10 volts
Frequency Response: 10 – 45000 Hz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: >80 dB
Variable high-pass filter (channel 1/2 and 3/4): 50 – 400 Hz
Variable low-pass filter (channel 1/2 and 3/4): 50 – 400 Hz
Variable band-pass filter (channel 3/4): 400 Hz – 6 kHz
Fuse Rating: 60A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 11.1″ L x 6.5″ W x 2.17″ H
1-year Manufacturer’s Warranty
MFR #: R2-A60F
