ALPINE S2-A60M
$ XXX.XX
High-Performance Class D Amplification
The Alpine S2-A60M is engineered for powerful and efficient bass reproduction. Using advanced Class D technology, this mono amplifier delivers clean, distortion-free power while maintaining an ultra-efficient operation. It is perfect for driving subwoofers and enhancing your vehicle’s low-frequency performance.
Premium Power Output
- Peak Power: Up to 600W RMS at 1Ω
- Designed for subwoofer applications with an adjustable low-pass filter (50Hz-400Hz)
- Ensures deep, rich bass response for high-performance sound systems
Built for Easy Installation
The compact design of the S2-A60M makes it easy to install in tight spaces, such as under seats or in small compartments. Featuring high-efficiency cooling and heavy-duty 4 AWG power input terminals, it ensures stable power delivery while preventing overheating.
Advanced Audio Controls
- Bass Boost EQ: Adjustable from 0 to +12dB at 50Hz for custom bass tuning
- Input Sensitivity: Variable range from 0.2V to 10V for versatile system integration
- Adjustable Crossover: Range from 50Hz to 400Hz for precise tuning
Seamless System Compatibility
The Alpine S2-A60M is built for modern car audio setups, featuring high and low-level inputs for seamless connectivity with both factory and aftermarket radios. This flexibility eliminates the need for additional converters, making installation easier and more efficient.
Product Details:
- S Series Class D 2 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 330 watts x 1 channel
- 2 ohm: 600 watts x 1 channel
- 1 ohm: 600 watts x 1 channel
- Total RMS power output: 600 watts
- Power and voltage LED visual indicator
- Wired bass level remote control Alpine RUX-KNOB.2 or Alpine RUX-H01 optional
- Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

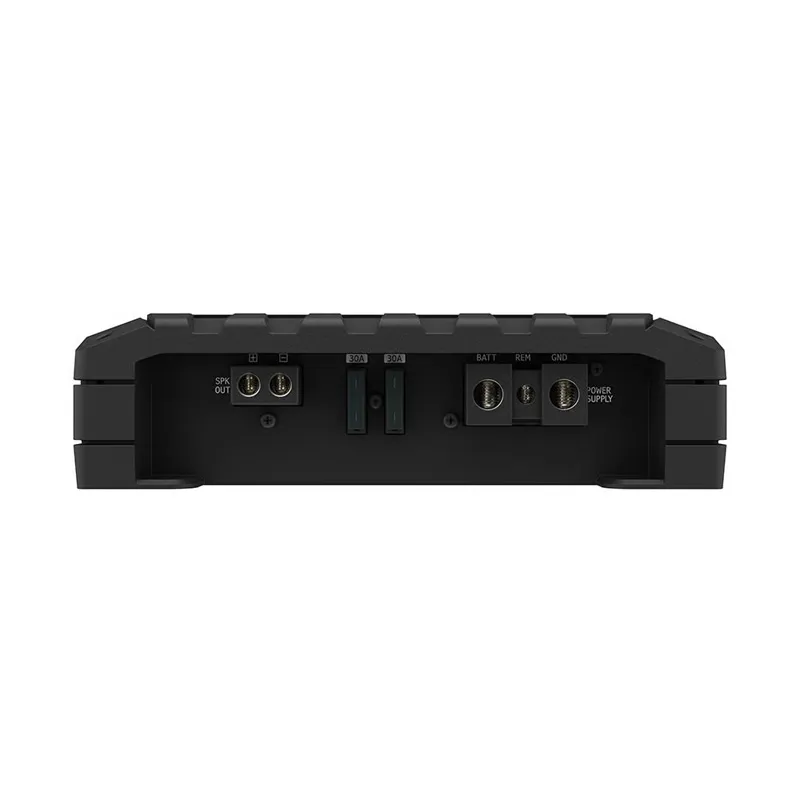

- Two-sided Terminal Layout
- Built-in Selectable / Adjustable Crossovers
- Damping Factor: >1000
- CTA-2006-D Certification
- 1 pair of pre-amp outputs
- Signal sensing remote turn-on
- Input sensitivity:
- Low level: 0.2 – 4 volts
- High level: 0.5 – 10 volts
- Frequency Response: 10 – 400 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: >85 dB
- Variable low-pass filter: 50 – 400 Hz
- Variable Bass Boost: 0 – 12 dB
- Fuse Rating: 60
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 8.7″ L x 8.25″ W x 2.25″ H
- 1-year Manufacturer’s Warranty
- MFR #: S2-A60M
Additional information
| Weight | 3 lbs |
|---|
