DB Drive WDX2000.1 : Mono Class D Amplifier
$ XXX.XX
Turn up the power with the DB Drive WDX2000.1 – where performance meets precision! Introducing the DB Drive WDX2000.1 Class D Mono Amplifier – the perfect blend of power and innovation! Designed for those who crave unparalleled sound quality, this amplifier boasts a 1Ω Mono capability, delivering an impressive 2000W of power at 14.4 volts. With Direct Connect Speaker Terminals, 4 Gauge Power Wire Input, and Collective Heat Management, every feature is crafted for optimal performance and durability. The Adaptive Crossover Technology and Signal Evaluation Status Indicator ensure precise sound control, while the Audio Protection Circuit safeguards your investment. Whether you’re pushing 1000W at 2Ω or 500W at 4Ω, the WDX2000.1 offers versatility and reliability. Elevate your audio experience with the WDX MINI AMPLIFIERS series and feel the difference every beat makes!
Features
- CLASS “D” CIRCUITRY

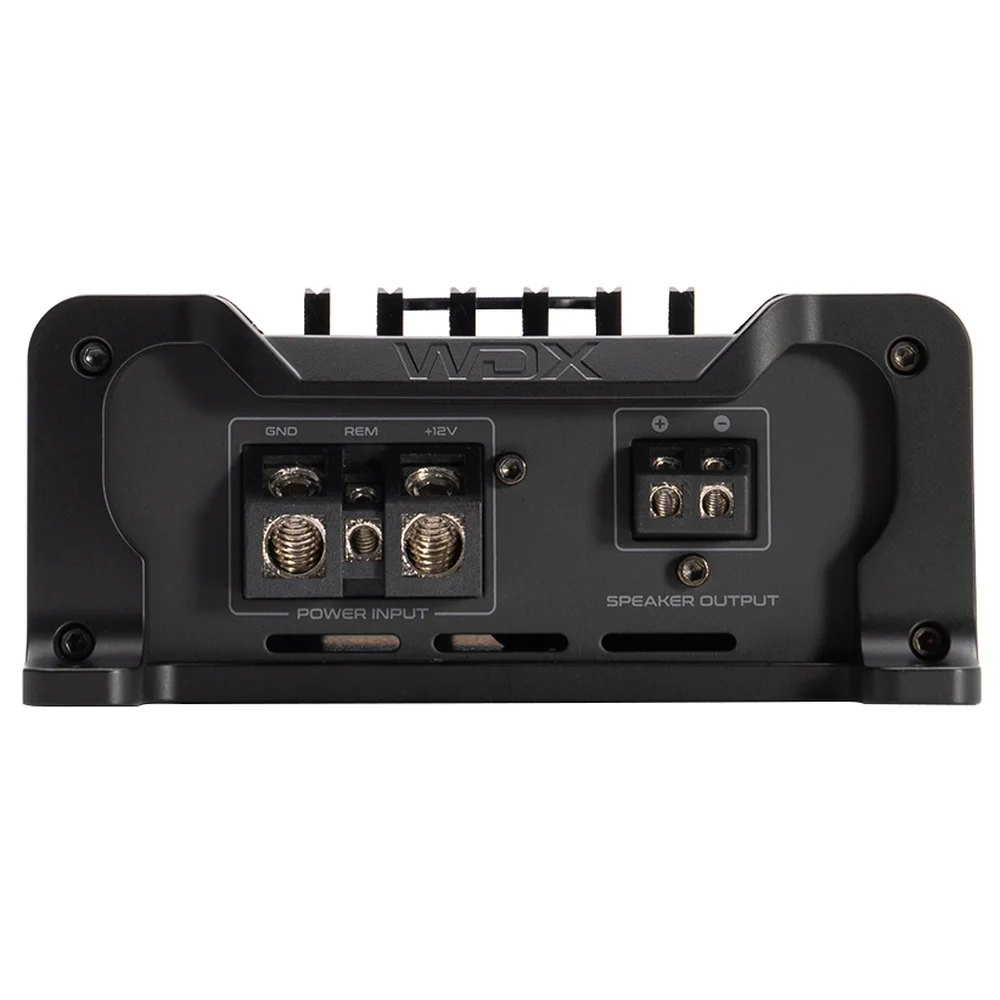

- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit

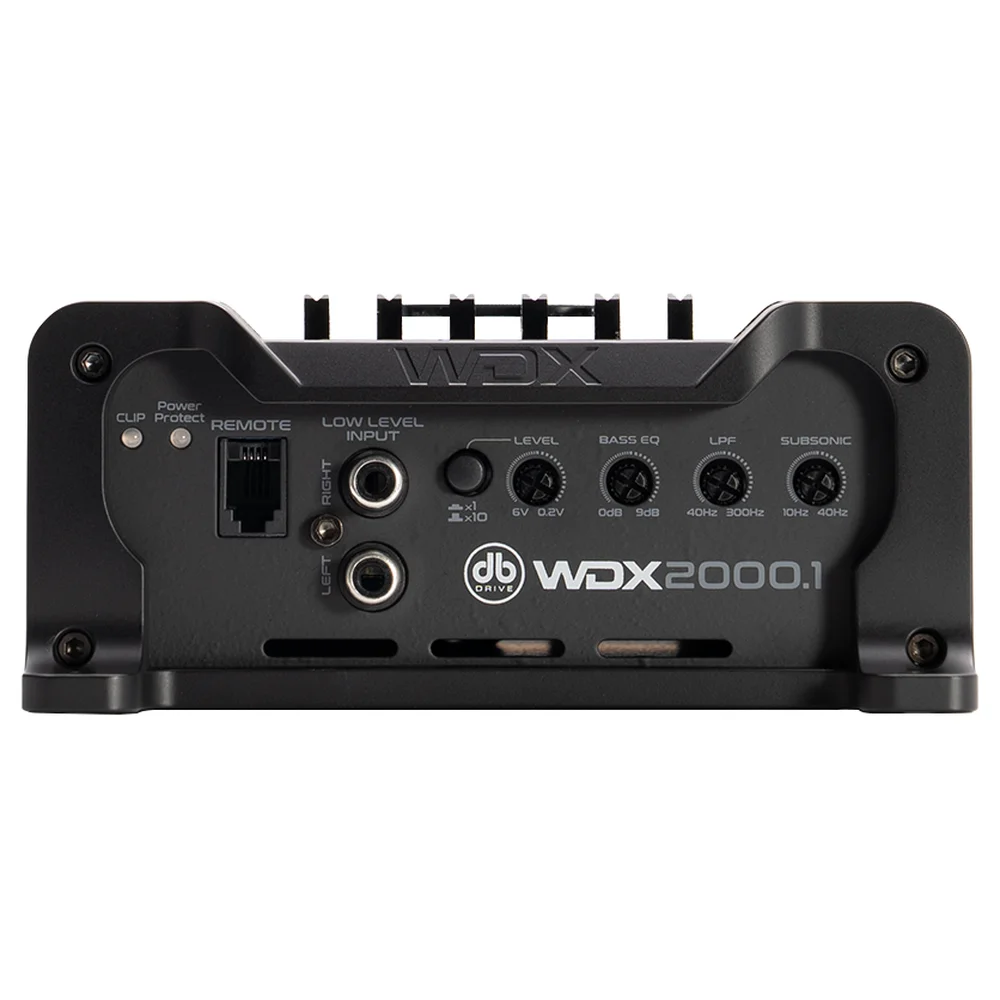

- Included Remote Level Control
Specifications
| Rated Power @14.4 Volts | |
|---|---|
| 1 x 2000 Watts @ 1Ω | |
| 1 x 1000 Watts @ 2Ω | |
| 1 x 500 Watts @ 4Ω |
| Frequency Response | 20Hz ~ 300KHz |
| S/N Ratio | < 95 dB |
| Low Level Input | 6V – 0.2V |
| Variable High Pass Filter (@ 12dB Slope) | 40Hz ~ 300Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 10Hz ~ 40Khz |
| Bass Equalizer | 0dB – 9dB |
| Working Voltage | 12 – 15 Volts |
